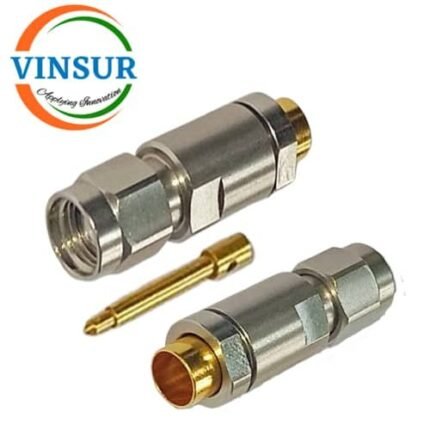

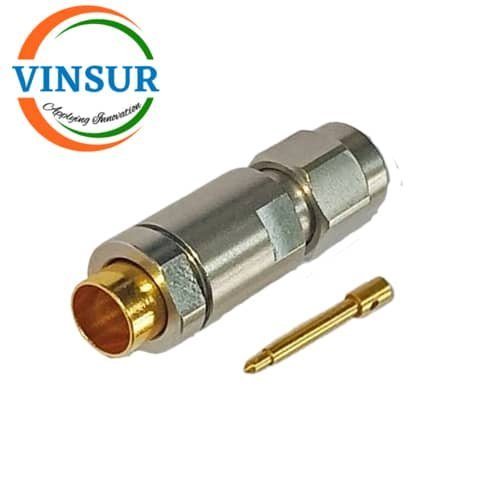

VSW250016-CN — RF CONNECTOR – 50 OHMS SMA MALE STRAIGHT SOLDER TYPE FOR RG402 CABLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Beryllium Copper |
| Contact Material | Brass |
| VSWR | 1.20max |
| Insulator Material | PTFE |
| Cable Type | RG402(0.141) |
| Max Frequency (GHz) | DC to 18 GHz |
| Polarity | Standard |
| Operating Temperature | -55°C to +105°C |
| Insulation Resistance | ≥5000MΩ |
| Dielectric withstand voltage | 1000V |
