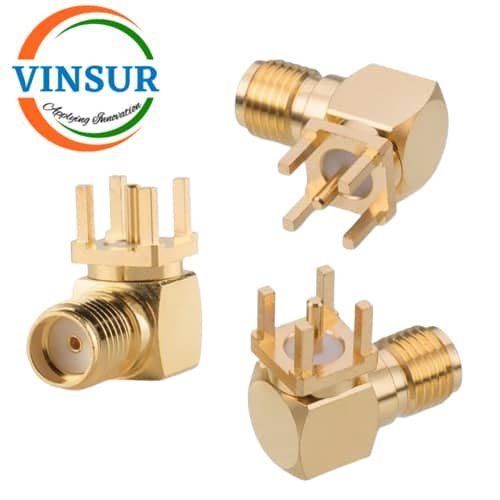

VSW-11522040 — RF CONNECTOR – 50 OHMS , SMA FEMALE , RIGHT ANGLE , PCB-THROUGH HOLE
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Right Angle |
| Mounting Style: | Through Hole |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | 1.4 Max |
| Insertion Loss | 0.2 dB |
| Max Frequency (GHz) | DC to 18 GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 °C |
| Max. Temp. (Celsius) | +165°C |
