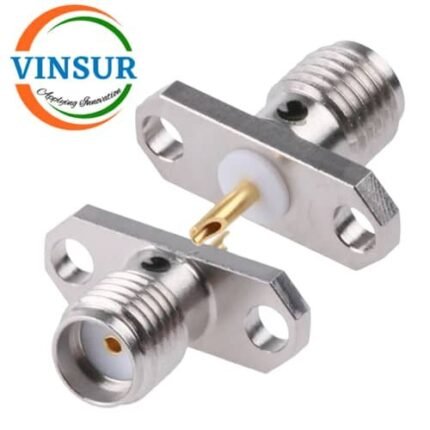

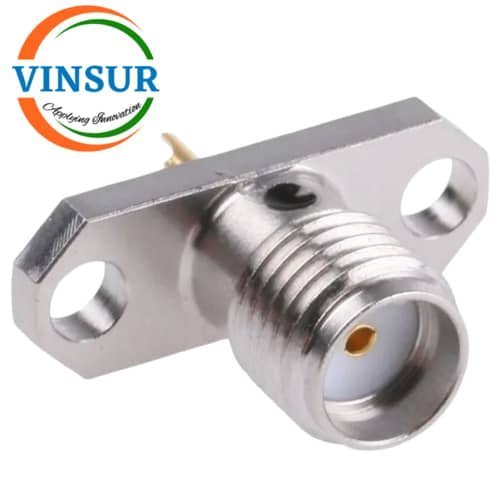

VSW-11521370-10 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , 2 HOLE FLANGE , SOLDER TERMINATION

SKU: VSW-11521370-10

Applications

  • Base Stations
  • Antennas
  • Telecommunications
  • Instrumentation
  • PC/LAN

Click here to get Data Sheet

Click here to get Mechanical Drawing

For Orders & Info

Call Us WhatsApp Us
Active technical support

Compare
Add to wishlist

Description

CONNECTOR SPECIFICATIONS
Gender Jack (Female)
Orientation Straight
Termination Style Solder
Impedance (Ohms) 50
Body Finish Nickel
Body Material Stainless Steel
Contact Finish Gold
Contact Material Beryllium copper
Mounting Features 2-hole Flange
Insulator Material PTFE
VSWR ≤1.15
Max Frequency (GHz) DC to 18GHz
Polarity Standard
Extended Dielectric Length (mm) –
Min. Temp. (Celsius) -65
Max. Temp. (Celsius) 165
