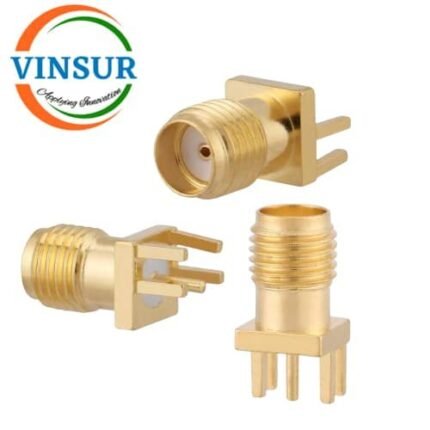

VSW-11521050 — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT , PCB-EDGE MOUNT
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | PCB – End Launch |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination Style | Solder |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | ≤1.5 |
| Max Frequency (GHz) | DC to 18GHz |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65 |
| Max. Temp. (Celsius) | 165 |
