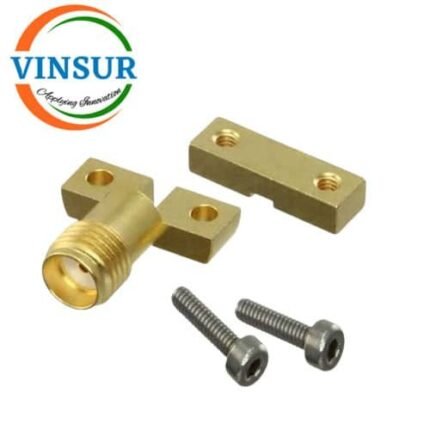

115213EI — RF CONNECTOR – 50 OHMS , SMA FEMALE , STRAIGHT, EDGE LAUNCH CONNECTOR
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Clamp |
| Impedance (Ohms) | 50 |
| Connector Mount Method | 2 Hole Flange |
| Center Contact | Beryllium-copper, Gold Plated |
| Body | Brass, Gold Plated |
| Contact Termination Style | Solder |
| Interface Type | End Launch |
| Insulator Material | PTFE |
| VSWR | ≤ 1.35:1 (DC to 18Ghz) |
| Insertion Loss | 0. 05 x Sqt.ft |
| Max Frequency (GHz) | DC to 18Ghz |
| Voltage Rating | 150Vrms |
| Dielectric Whistling Voltage | 500V |
| Insulation Resistance | ≥500M ohm |
| Mating Torque | 5-7 in – Ibs |
| Mating Cycles | 500 Cycles |
| Temperature Rating | -40°C ~ +125 °C |
