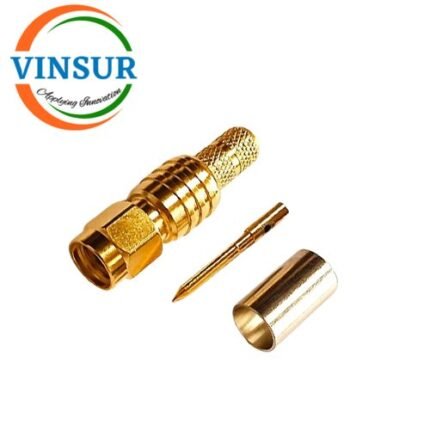

VSW250006-CN — RF CONNECTOR – 50 OHMS , SMA MALE , STRAIGHT , CRIMP TYPE , VSW-240 CABLE (8GHz)
Applications
- Base Stations
- Antennas
- Telecommunications
- Instrumentation
- PC/LAN
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | Cable – Crimp |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Insulator Material | PTFE |
| Cable Type | VSW240 |
| Max Frequency (GHz) | DC to 8 GHz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Thread Direction | Standard |
| Operating Temperature | -40°C ~ 85°C |
