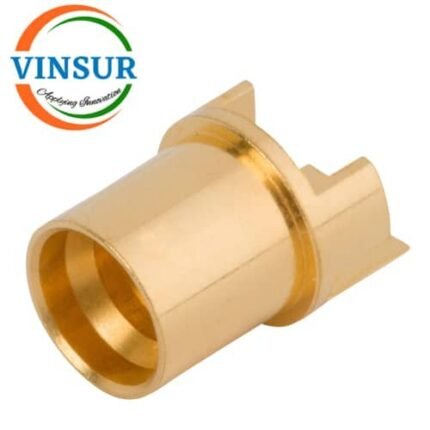

11L11050 — RF CONNECTOR – 50 OHMS , SMP MALE , STRAIGHT , PCB-EDGE MOUNT
APPLICATIONS:Â Â
- Aerospace & Defense
- Telecommunications
- Satellite Communications (SATCOM)
- Test & Measurement
- Medical & Industrial
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Termination Style | PCB- Edge Mount |
| Impedance (Ohms) | 50 |
| Body Finish | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | Solder |
| Mounting Type | PCB Edge Launch |
| Mounting Features | – |
| Insulator Material | PTFE |
| VSWR | 1.7Max |
| Max Frequency (GHz) | DC to 26.5 GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | 165°C |
