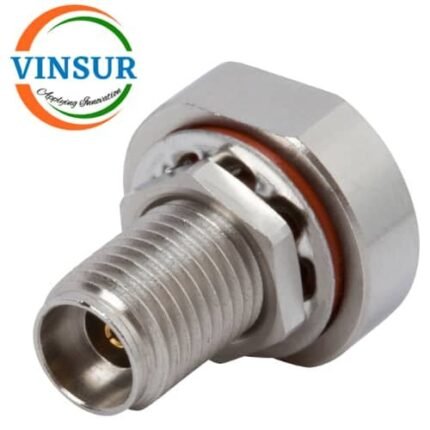

1U2123Q– RF CONNECTOR: 50Ω , 2.92MM FEMALE , STRAIGHT , BULKHEAD REAR MOUNT , SOLDER TYPE , 0.047 CABLE
Applications
- Telecommunications: Base stations, antenna arrays for 5G/6G, data centers, and high-speed networks.
- Military & Aerospace: Missile guidance, radar systems, electronic warfare, satellite ground stations, and airborne communication.
- Test & Measurement: Network analyzers, test fixtures, attenuators, and high-frequency system calibration.
- Industrial Automation & Robotics: High-speed data links in demanding environments.
- Medical: High-reliability connections in advanced medical devices.
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| Connector name | 2.92mm |
| Gender | Jack (Female) |
| Orientation | Straight Bulkhead |
| Termination Style | Solder |
| Impedance | 50Ω |
| Body Finish | Nickel |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium copper |
| Coupling | Threaded |
| Insulator Material | PTFE |
| Cable Type | 0.047 Flexible Coax |
| Number of Ports | Single |
| VSWR | 1.25:1 |
| Max Frequency | DC to 40GHz |
| Temperature Rating | -65°C to +165°C |
