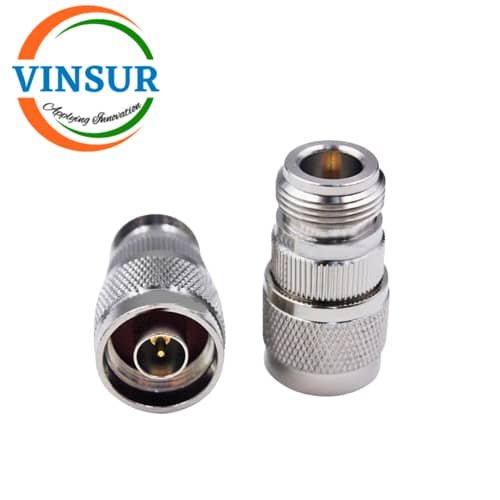

41110121– RF ADAPTER – 50 OHMS N-TYPE MALE TO N-TYPE FEMALE STRAIGHT ADAPTERS
P/N :-41110121
- RF Adapter
- N-Type Adapters
- N-Type to N-Type Adapters
- Male to Female
-  50Ω
- Max Frequency (GHz) -DC~ 6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | N-type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Adapter Side 2 Series | N-type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Mounting Features | – |
| Impedance (Ohms) | 50Ω |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6GHz |
| VSWR(Max) | ≤1.2:1 |
| Min. Temp. (Celsius) | -45°C |
| Max. Temp. (Celsius) | +125°C |
