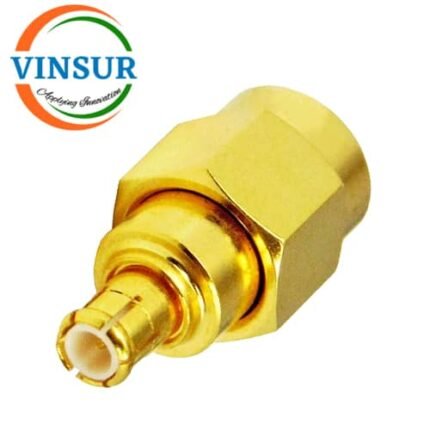

41410611 — RF ADAPTERS – 50 OHMS MCX MALE TO SMA MALE STRAIGHT ADAPTERS
P/N :-41410611
- RF Adapter
- MCX Adapters
- MCX to SMA Adapters
- Male to Male
-  50Ω
- Max Frequency (GHz) -DC~ 6GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | MCX |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Adapter Side 2 Series | SMA |
| Gender2 | Plug(Male) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Gold |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz)Â Â Â Â Â | DC to 6GHz |
| VSWR | 1.30 Max |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +165°C |
