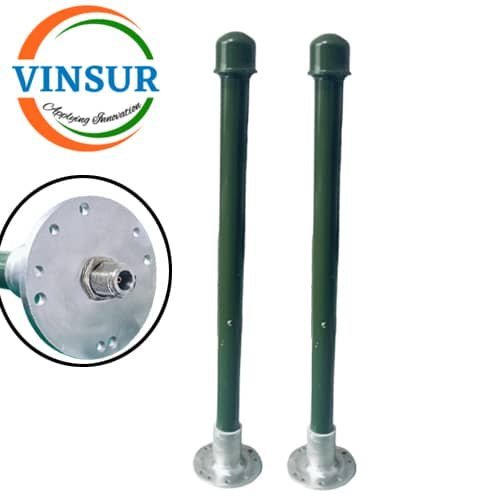

Omni-Directional Antenna (1.43 -1.54GHz , 9dBi)
APPLICATIONS:Â Â
- Mobile Devices: Integrated into cell phones, tablets, and portable walkie-talkies to maintain a connection while the user is moving.
- Broadcasting: Essential for FM radio and television stations to reach receivers spread across a wide geographic region.
- IoT and Smart Homes: Utilized by smart home hubs and industrial sensors to connect to various devices located in different directions.
For Orders & Info
Description
| SPECIFICATION | |
| Frequency | 1.43-1.54GHz |
| Gain | 9dBi |
| VSWR | 1.5:1 Max |
| Beam width | 360° × 20° |
| Polarization | Linear (Vertical) |
| Input Impedance | 50 Ohms |
| Radiation Pattern | Omni Directional |
| RF Power Handling Capacity | 100 Watts. |
| Connector | N-Female |
| Radom | Fibber Glass |
| Dimension of antenna | 430mm ±25mm |
| Dimension of Holder | 76×76×55mm |
