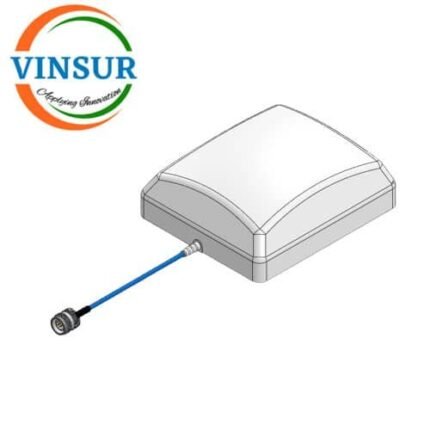

INDOOR SISO PATCH PANEL ANTENNA (698-4200MHz , 3-4.5dBi)
- Signal Boosters
- Enterprise Wi-Fi
- Point-to-Point Links
- Specialized Systems
For Orders & Info
Description
| SPECIFICATION | |
| Input Impedance | 50 Ohms |
| Frequency Range | 698 – 4200 MHz |
| Port to Port Isolation | 17 / 20 / 25 dB |
| Gain | 3 / 4.5dBi |
| Horizontal Beam Width | 360° |
| VSWR (Max.) | ≤ 2:1 |
| Input Power | 50W |
| Passive Intermodulation 3rd Order, 2 x 20W | -150 dBc |
| Connector | 4.3-10 Â Female |
| Dimension | Ø220 x 40 mm |
| Weight | 500 grams. |
| Mounting | Wall Mount |
| Operating Temperature | -30° to +60°C |
| Humidity | 5 – 95% |
