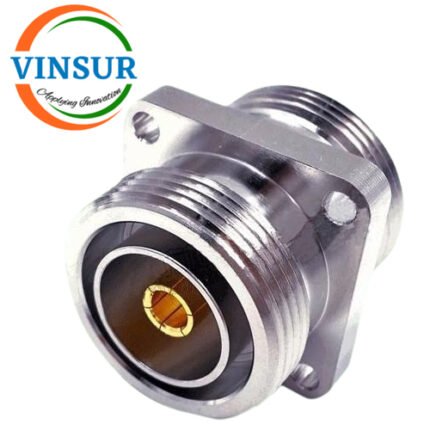

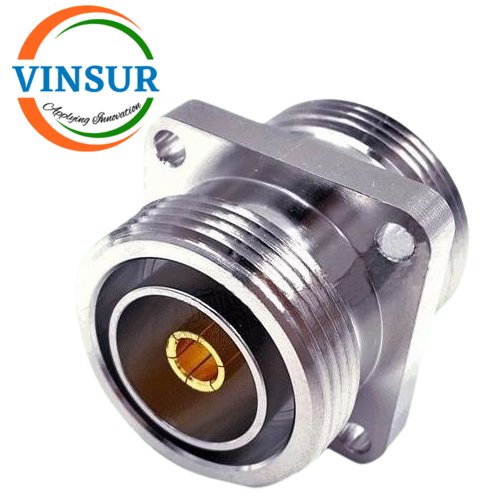

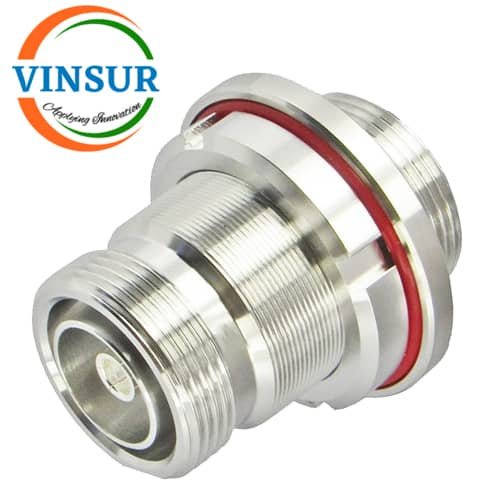

41F24F21-60 — RF ADAPTER – 50 OHMS, 7-16 FEMALE TO 7-16 FEMALE STRAIGHT ADAPTER
P/N :41F24F21-60
- RF Adapter
- 7-16 Adapters
- 7-16 to 7-16 Adapters
- Female to Female
- 50Ω
- Max Frequency (GHz) -DC~3GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | 7/16 |
| Gender1 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Adapter Side 2 Series | 7/16 |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Mounting Features | 4-Hole Flange Mount |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR(Max) | 1.15:1 Max |
| Min. Temp. (Celsius) | -45°C |
| Max. Temp. (Celsius) | +120°C |
