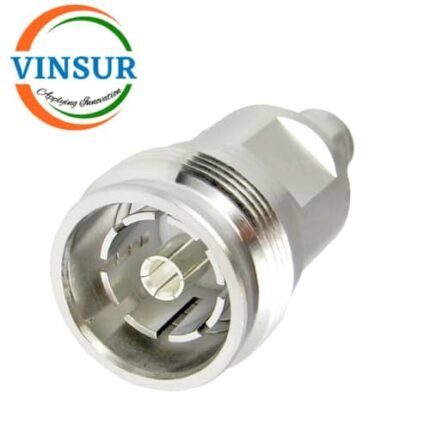

VSW-41G20421-ADP — RF ADAPTER – 50 OHMS 4.3-10 FEMALE STRAIGHT TO SMA FEMALE STRAIGHT ADAPTER

P/N :VSW-41G20421-ADP

  • RF Adapter
  • 4.3-10 Adapters
  • 4.3-10 to SMA Adapters
  • Female to Female
  • 50Ω
  • Max Frequency (GHz) -DC~6GHz

Click here to get Data Sheet

For Orders & Info

Call Us WhatsApp Us
Active technical support

Compare
Add to wishlist

Description

ADAPTER SPECIFICATIONS
Adapter Side 1 Series 4.3-10
Gender1 Jack(Female)
Orientation Straight
Body Plating Nickel
Body Material Brass
Contact Finish Silver
Contact Material Beryllium Copper
Adapter Side 2 Series SMA
Gender2 Jack(Female)
Orientation Straight
Body Plating Nickel
Body Material Brass
Contact Finish Silver
Contact Material Beryllium Copper
Mounting Features –
Impedance (Ohms) 50
Insulator Material PTFE
Max Frequency (GHz)      DC to 6GHz
VSWR(Max) ≤1.20 Max
Min. Temp. (Celsius) -65°C
Max. Temp. (Celsius) +165
Max. Temp. (Celsius) +165°C
