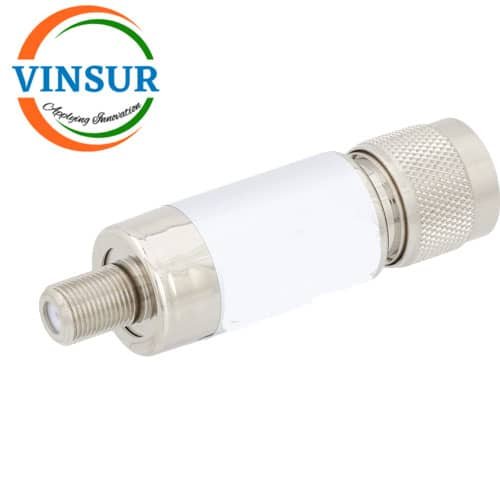

42116B213G — RF ADAPTER – 50 OHMS N MALE TO 75 OHM F FEMALE STRAIGHT MATCHING PAD ADAPTERS
P/N :-42116B213G
- RF Adapter
- F -Type Adapters
- F-Type to N-Type Adapters
- Male to Female
- N-type 50Ω,F-Type 75Ω
- Max Frequency (GHz) -DC~ 3GHz
Click here to get Data Sheet
For Orders & Info
Description
| ADAPTER SPECIFICATIONS | |
| Adapter Side 1 Series | F-Type |
| Gender1 | Plug(Male) |
| Orientation | Straight |
| Impedance (Ohms) | 75 |
| Adapter Side 2 Series | N-Type |
| Gender2 | Jack(Female) |
| Orientation | Straight |
| Mounting Features | – |
| Impedance (Ohms) | 50 |
| Body Plating | Nickel |
| Body Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Max Frequency (GHz) | DC to 3GHz |
| VSWR | 1.3:1 |
| Min. Temp. (Celsius) | -40°C |
| Max. Temp. (Celsius) | +85°C |
