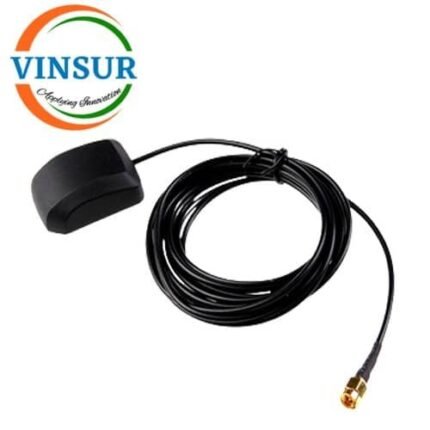

900-1800 3DBI GPS ANTENNA
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| SPECIFICATION | |
| Operating Frequency | 1575 MHz |
| LNA gain(without cable) | 27dB |
| Typical noise figure | 3dB |
| Operating Voltage (VDC) | 3 ~ 7 |
| Operating Current | 15mA |
| Max. GSM Working Frequency | 824-894/1710-1880 MHz |
| VAWR | 2:1 |
| Impendence | 50 Ohms |
| Peak gain | 3dBi at 900mhz,2dBi at 1800mhz |
| Connector | SMA-Male |
| Colour | Black |
| Cable Size (AWG) | 2.6 |
| Weight (gm.) | 60 |
| Cable Length (Meter) | Â 3 |
