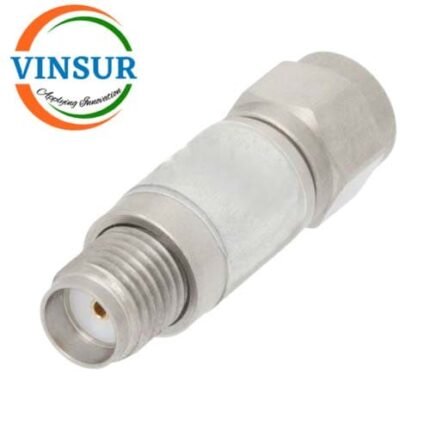

Biased Detector With SMA Male to SMA Female and Positive Video Out Operating From 8Ghz to 18Ghz
P/N : VSW260031-BD
- RF Biased Detector
- 50Ω
- SMA Male to Female
- 8Ghz to 18Ghz
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Frequency | 8-18GHz |
| Flatness | ±0.7dB |
| Input Power | +23 dBm |
| VSWR | ≤1.20 |
| Impedance | 50Ω |
| Connector | SMA Female to Female |
| Operating Temperature (deg) | -55℃～+125℃ |
| Electrical Specification Notes | @ +25 deg C, 100uA Bias, and -20 dBm Pin |
| Voltage Sensitivity | An open circuit
TSS is measured with a 2 MHz video bandwidth and a 2 dB NF Amplifier |
| Operating Range | -55 to +125 deg C |
| Storage Range | -65 to +150 deg C |
