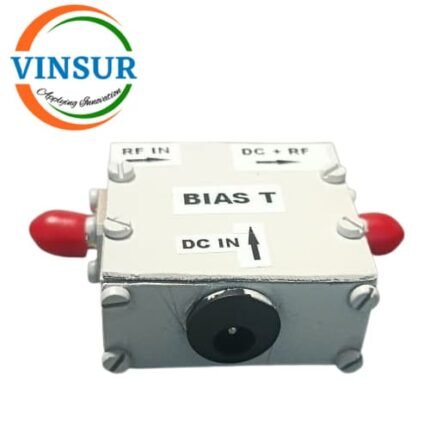

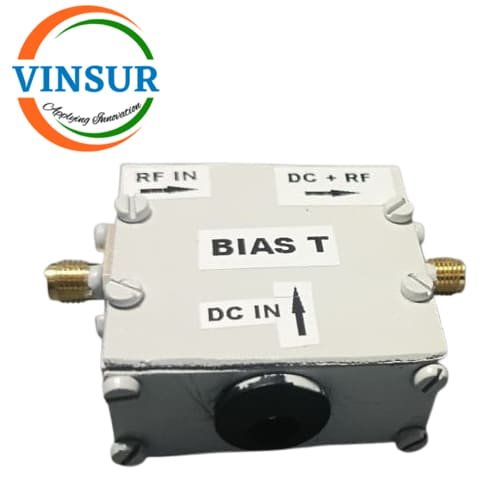

RF Bias Tee (1100-1700MHz 20W SMA Female)
P/N : VSW260076-BT
- RF Bias Tee
- 50Ω
- SMA Female
- 20W
- 1100-1700MHz
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL & MECHANICAL SPECIFICATIONS | |
| Frequency(MHz) | 1100-1700MHz |
| Insertion Loss(dB) | ≤0.45 |
| Voltage | 48 VDC(Max) |
| Current | 500mA |
| VSWR | ≤1.20 |
| Impedance | 50 ohm |
| Power Rating(W) | 20W (Max) |
| Operating Temperature (deg) | -30～+55℃ |
| Connector | SMA Female |
| Relative Humidity | 5%-95% |
| Dimensions(mm) | 30x46x19 |
