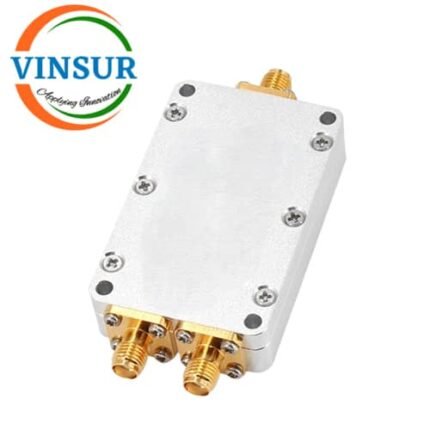

RF Power Divider (500 kHz ~ 600 MHz SMA Female)
P/N : VSW250025-PD
- RF Power Divider
- 2-Way
- SMA Female
- Impedance – 50Ω
- Frequency – 500 kHz ~ 600 MHz
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency Range | 500 kHz -600 MHz |
| Insertion Loss | ≤ 1.0 dB (Excluding theoretical loss 3.0 dB） |
| Combined port VSWR | Typ.1.25 / Max.1.3 |
| Distribution port VSWR | Typ.1.12 / Max.1.2 |
| Isolation | Typ.23dB / Min.20dB |
| Amplitude Balance | ≤ 0.3dB |
| Phase Balance | ±3° |
| Impedance | 50 Ohms |
| Port Connectors | SMA-Female |
| Power Rating | Splitter 30W;Combiner 2W |
| Operation Temperature | -40℃ ~ +75℃ |
| Weight | 50 (G) |
