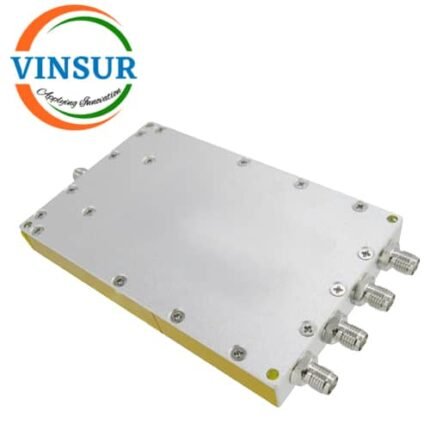

RF Power Splitter(1-4 Way 380MHz-4.8GHz SMA Female 30W)
P/N : VSW250029-PS
- RF Power Splitter
- 4-Way
- SMA Female
- Frequency – 380-4.8GHz
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | ||
| Split Chanel | 4-way | |
| Frequency | 380Mhz-4.6 Ghz | |
| Insertion Loss | 1.5 dB(Excluding theoretical 6.0 dB) | |
| Isolation | 18 dB | |
| VSWR | 1.30(Input) | 1.20(Output) |
| Amplitude Balance | ±0.30 dB | |
| Impedance | 50 ohms | |
| Connector | SMA Female | |
| Phase Balance | ±4° | |
| Power Handling | 30 Watts Average as Splitter | |
| DC Current | 700 mA(175 mA each port) | |
| Operating Temperature(℃) | -35°C to +75°C | |
