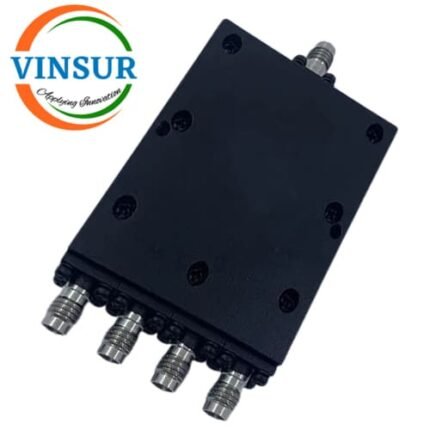

RF Power Splitter(4-way 2-50GHz 10W 2.4mm Female)
P/N : VSW-2WSP-50G
- RF Power Splitter
- 4-Way
- 2.4 Female
- Frequency(MHz)Â – 5-1000
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Product Name | 4Way Power Splitter |
| Frequency Range | 2-50 GHz |
| Insertion Loss | ≤ 5.5dB（Does not include theoretical loss 6dB） |
| VSWR | IN:≤1.9: 1 OUT:≤1.8:1 |
| Isolation | ≥14dB |
| Amplitude Balance | ≤±0.6 dB |
| Phase Balance | ≤±8° |
| Impedance | 50 OHMS |
| Power Handling | 10 Watt |
| Port Connectors | 2.4-Female |
| Operating Temperature | ﹣40℃ to +80℃ |
