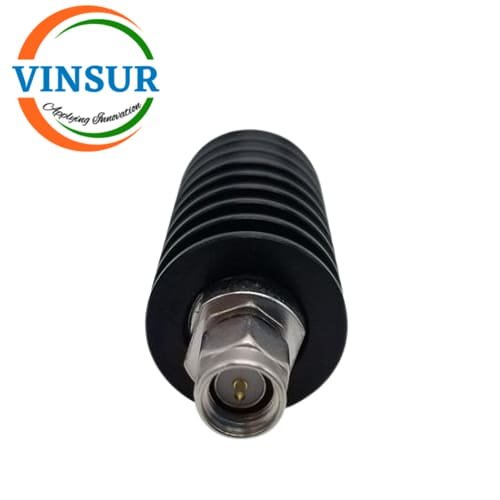

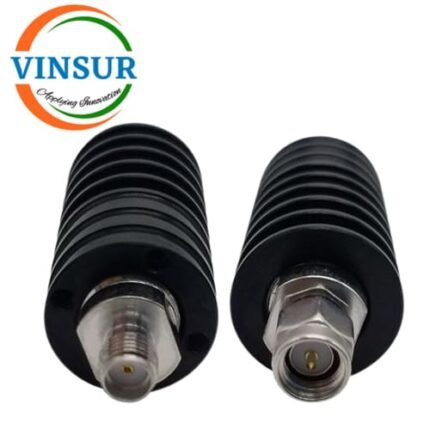

RF Fixed Attenuator (10W 30dB DC-12GHz SMA Male to SMA Female)
P/N : VSW-ATT-10-30-SMA-MF
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 10WÂ
- Attenuation – 30dB
- Max Frequency(GHz)Â – DC-12
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Frequency (GHz) | DC-12GHz |
| Attenuation(dB) | 30 |
| Attenuation Accuracy (dB) | ±1.0 |
| Average Power(W) | 10W@25℃ |
| VSWR | 1.3 |
| Impedance | 50 ohm |
| Connector | SMA-M to SMA-F |
| Colour | Black |
| Temp(deg) | -40~+125 |
