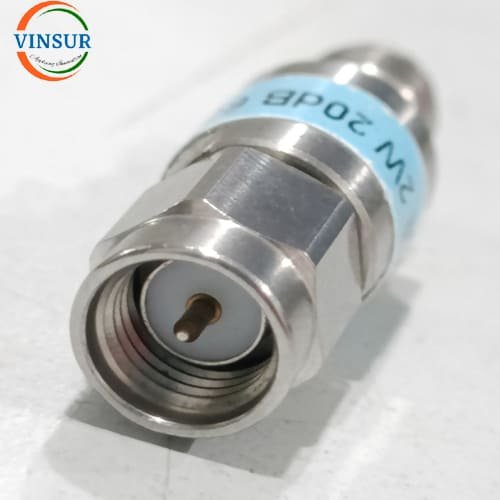

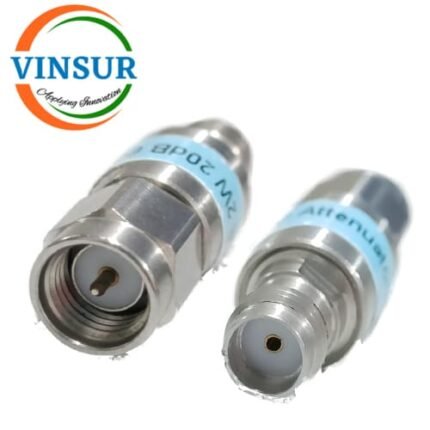

RF Fixed Attenuator (2W 20dB DC-6GHz SMA Male to Female)
P/N : 51411422-10
- RF Fixed Attenuator
- 50Ω
- SMA Male to Female
- 2WÂ
- Attenuation(dB) – 20
- Max Frequency (GHz) – DC-6
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Gender1 | Male |
| Adapter Side 1 Series | SMA |
| Gender2 | Female |
| Adapter Side 2 Series | SMA |
| Impedance (Ohms) | 50 |
| Attenuation | 20dB |
| VSWR | 1.30:1 |
| Housing | Stainless Steel |
| Contact Material | Beryllium copper gold plated |
| Dielectric | PTFE |
| Mounting Feature | Cable & equipment |
| Max Frequency               | DC to 6GHz |
| Min. Temp. (Celsius) | -65°C |
| Max. Temp. (Celsius) | +125°C |
