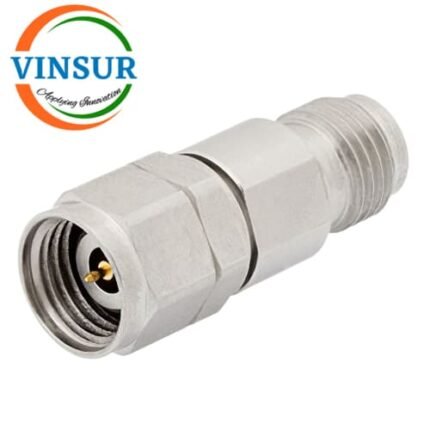

RF Fixed Attenuator (2W 20dB DC-50GHz 2.4mm Male to Female)
P/N : VSW-2W-50G-COAT
- RF Fixed Attenuator
- 50Ω
- 2.4mm Male to Female
- 2W 20dB
- Max Frequency (GHz) – DC-50
Features:
- Wide Frequency Band DC-50GHz
- Low VSWR
- Low Attenuation Accuracy
- Widely used for In-building Solutions
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Freq(GHz) | DC-50GHz |
| Attenuation(dB) | 20 |
| Accuracy(dB) | ±0.8 dB |
| VSWR | 1.3Max |
| Average Power(W) | 2W @ 25°C ambient |
| Impedance | 50Ω |
| Input Connector | 2.4mm Male |
| Output Connector | 2.4mm Female |
| Colour | Silver |
| Operating Temperature | -20°C to ±70°C |
| Body | Passivated Stain Less Steel |
| Center Contact | Gold Plated Beryllium Copper |
