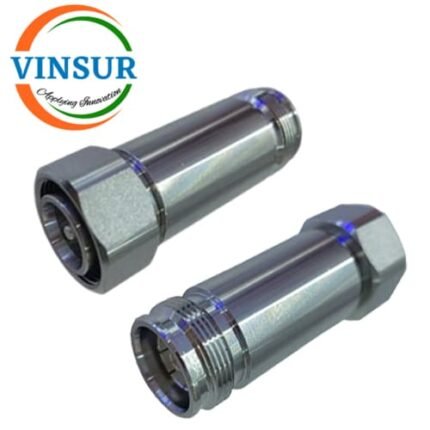

RF Fixed Attenuator (5W DC-6GHz , 4.3-10 Male- Female)
P/N : VSW260073-ATT
- RF Fixed Attenuator
- 50Ω
- 4.3-10 Male to Female
- 5WÂ
- Attenuation(dB) – 5/6/7/8/9/10/13/15/20
- Max Frequency (GHz) – DC-6
Features:
- Wide Frequency Band DC-6GHz 5w coaxial attenuator
- 2G/3G/4G/LTE Coverage
- Low VSWR
- Widely used for In-building Solutions
Click Here to get Data Sheet
For Orders & Info
Description
| TECHNICAL & MECHANICAL SPECIFICATIONS | |
| Freq(MHz) | DC-6GHz |
| VSWR | ≤1.25 |
| Power(W) | 5(average) |
| Attenuation(dB) | 5/6/7/8/9/10/13/15/20 |
| Accuracy(dB) | ±0.8 @（5-9dB）,±0.9（10-13dB）, ±1.0（15-20dB） |
| Impedance | 50 ohm |
| Connector | 4.3/10-male to female |
| colour | Silver |
| Temp(deg) | -30~+65 |
| Freq(MHz) | DC-6GHz |
