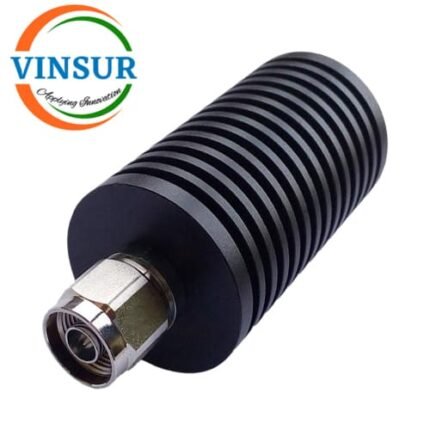

RF Termination Load (50W DC-6GHz N Male)
P/N : VSW-50W-6G-NM-TL
- RF Termination Load
- 50W
- N Male
- Frequency(GHz) – DC-6
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Silver |
| Contact Material | Brass |
| Gender | Plug(Male) |
| Connector | N-type |
| Impedance (Ohms) | 50 |
| Orientation | Straight |
| Power Handling | 50watt |
| VSWR | ≤ 1.20 |
| Material | Aluminium |
| Frequency | DC-6GHz |
| Temp (Max Degrees Celsius) | +85°C |
| Temp (Min Degrees Celsius) | -40°C |
