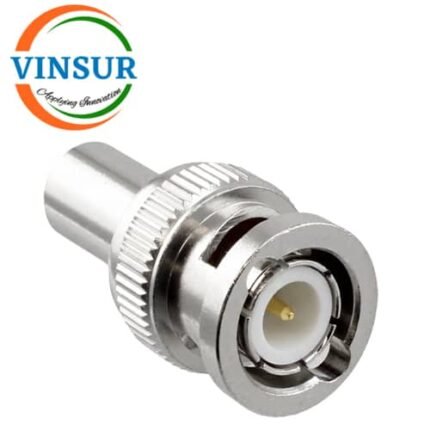

RF Termination Load (5W DC-4GHz BNC Male)
P/N : VSW-BNC-4W-4G
- RF Termination Load
- 5W
- BNC Male
- Frequency(GHz) – DC-4
Click Here to get Data Sheet
For Orders & Info
Description
| TECHNICAL & MECHANICAL SPECIFICATIONS | |
| Freq(MHz) | Dc to 4Ghz |
| VSWR | 1.25 max |
| Power Rating(W) | 5W |
| Impedance | 50 Ω |
| Connector | BNC |
| Gender | Plug(Male) |
| Connector Body | Nickel |
| Centre Contact | Gold plated brass |
| Heat Sink | Black anodized aluminium |
| Temp (Max Degrees Celsius) | +165°C |
| Temp (Min Degrees Celsius) | -65°C |
