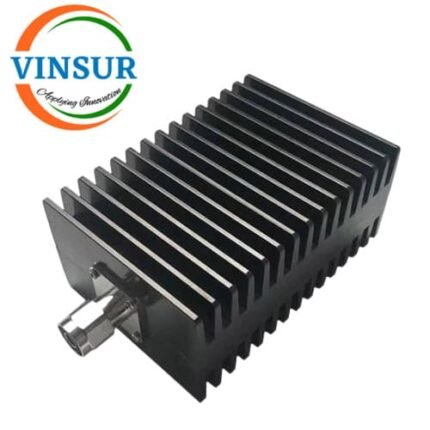

RF Termination Load (150W DC-6GHz N Male)
P/N : VSW250036-TLÂ Â Â Â Â
- RF Termination Load
- 150W
- N Male
- Frequency(GHz) – DC-6
Click Here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | DC-6GHz |
| VSWR | ≤1.30 |
| Power rating | 150W@ 25℃ |
| Impedance | 50Ω |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating temperature range | -40℃~+125℃ |
| Relative humidity | 5%-95% |
| Working air pressure | 55KPa-106KPa |
| Applications | Indoors |
| MECHANICAL SPECIFICATIONS | |
| Dimensions | 172 x 68 x 70 (mm) |
| Weight | 1500g |
| Connectors type | N male |
