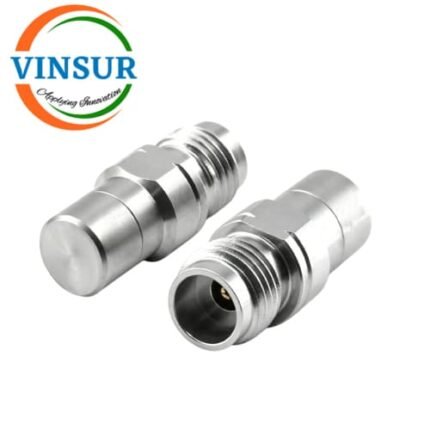

RF Termination Load (2W DC-50GHz 2.4mm Female)
P/N : VSW-2.4-FT50G
- RF Termination Load
- 2W
- 2.4mm Female
- Frequency(GHz) – DC-50
Click Here to get Data Sheet
For Orders & Info
Description
| MATERIAL SPECIFICATION | |
| Connector | 2.4mm |
| Gender | Jack(Female) |
| Body Materials and Plating | Stainless Steel with Passivated |
| Orientation | Straight |
| Insulator | PTFE |
| ELECTRICAL SPECIFICATION | |
| Freq(MHz) | DC to 50GHz |
| VSWR | ≤1.35 |
| Power Rating(W) | 2W |
| Impedance | 50 Ω |
| Insulation Resistance | ≥5000 MΩ |
| Mating Cycles | ≥500 |
| Operation Temperature Rating | -55°C ~ +125°C |
