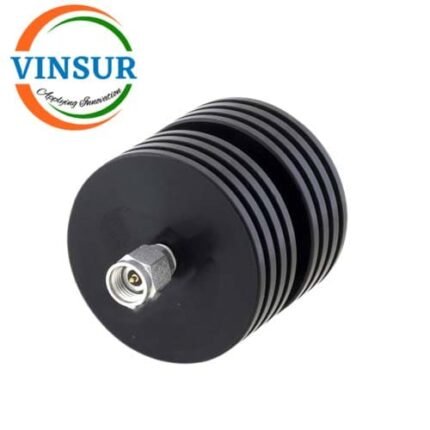

RF Fixed Attenuator (10W 30dB DC-40GHz 2.92mm Male to Female)
P/N : VSW260032-ATT
- RF Fixed Attenuator
- 50Ω
- 2.92mm Male to Female
- 10W 30dB
- Max Frequency (GHz) – DC-40
Applications:
- Instrumentation
- Precision measurements
- Prototyping and characterization
- Production systems
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Frequency                       | DC to 40GHz |
| Connector Side 1 Series | 2.92mm Plug (Male) |
| Contact Material and Plating | Beryllium Copper, Gold |
| Body Material and Plating | Black Anodized Aluminium |
| Connector Side 2 Series | 2.92mm Jack(Female) |
| Contact Material and Plating | Beryllium Copper, Gold |
| Body Material and Plating | Black Anodized Aluminium |
| Impedance (Ohms) | 50 |
| Input Power, CW | 10Watt |
| Input Power, Peak | 200Watt |
| Nominal Attenuation | 30dB |
| Attenuation Accuracy | 1 dB @ Dc to 18GHz  & 1.75 dB @ 18 to 40 GHz |
| VSWR Max | DC to 18 1.25:1 & 18 to 40 1.4:1 |
| Min. Temp. (Celsius) | -55°C |
| Max. Temp. (Celsius) | +125°C |
