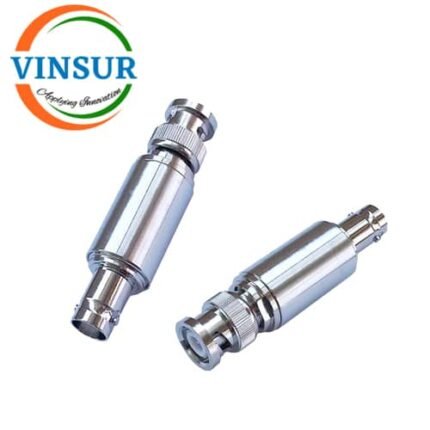

RF Fixed Attenuator (1W DC-2GHz 10dB BNC Male- Female)
P/N : 51312323-30
- RF Fixed Attenuator
- 50Ω
- BNC Male to Female
- 1WÂ
- Attenuation(dB) – 10
- Max Frequency (GHz) – DC-2
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Gender1 | Male |
| Adapter Side 1 Series | BNC |
| Gender2 | Female |
| Adapter Side 2 Series | BNC |
| Impedance (Ohms) | 50Ω |
| Attenuation | 10dB |
| VSWR | ≤1.2 |
| Housing | Stainless Steel |
| Contact Material | Beryllium copper gold plated |
| Dielectric | PTFE |
| Power | 1W |
| Max Frequency               | DC to 2GHz |
| Min. Temp. (Celsius) | -55 |
| Max. Temp. (Celsius) | 125 |
