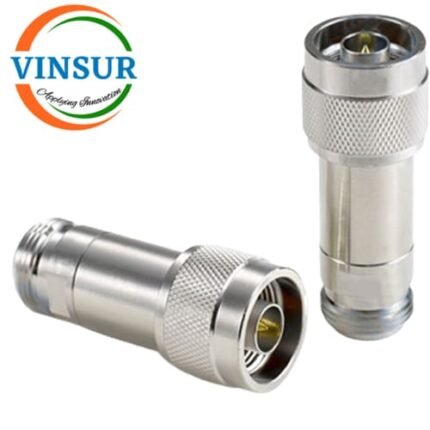

RF Fixed Attenuator (2W 10dB DC-8GHz N Male to Female)
P/N : 51111123-20
- RF Fixed Attenuator
- 50Ω
- N Male to Female
- 2WÂ
- Attenuation Value(dB) – 10
- Max Frequency (GHz) – DC-8
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Type | RF Fixed Attenuator |
| Gender1 | Male |
| Adapter Side 1 Series | N |
| Gender2 | Female |
| Adapter Side 2 Series | N |
| Impedance (Ohms) | 50Ω |
| Attenuation | 10dB |
| VSWR | ≤1.2 |
| Housing | Stainless Steel |
| Contact Material | Beryllium copper gold plated |
| Dielectric | PTFE |
| Power | 2W |
| Max Frequency               | DC to 8GHz |
| Min. Temp. (Celsius) | -55 |
| Max. Temp. (Celsius) | 120 |
