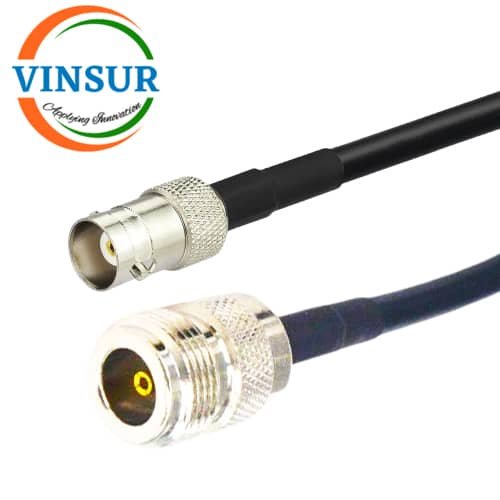

BNC Female Straight to N Female Straight for VSW200-UF Cable of Length 5M
P/N : VSW250108-CA
- RF Cable Assembly
- BNC Cable Assembly
- BNC to N-type
- VSW200-UF Cable
- BNC Female to N FemaleÂ
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | N-type |
| Gender | Jack(Female) |
| Orientation1 (body) | Straight |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | BNC |
| Orientation 2 (body) | Straight |
| Gender 2 | Jack(Female) |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC-4Ghz |
| Impedance | 50 Ω |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Type | VINSUR200-UF |
| Cable Diameter | 4.95mm |
| Suitable for frequencies | DC to 8Ghz |
| Impedance | 50 Ω |
| Length | 5Meter |
| Temperature rating | -40 / +85°C |
