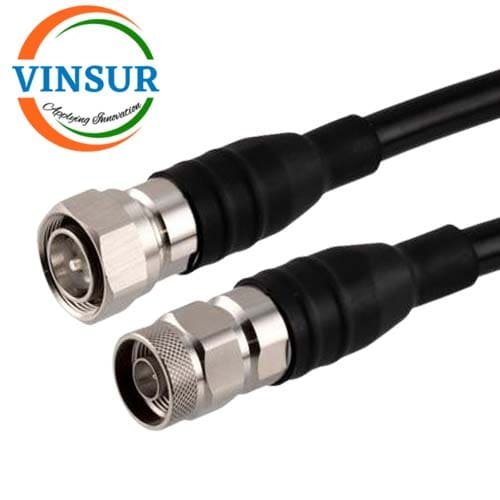

DIN(7/16) Male Straight to N Male Straight for 1/2″ Super Flex Cable of Length 2M
P/N : VSW-61110G10W-2MÂ Â
- RF Cable Assembly
- 7/16(DIN) Cable Assembly
- DIN to N
- ½” Superflux Cable
- Male to Male
Click Here To Download Datasheet
For Orders & Info
Description
| CONNECTOR SPECIFICATION | |
| RF Series 1 | DIN |
| Gender | Plug(Male) |
| Orientation1 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| RF Series 2 | N |
| Gender 2 | Plug (Male) |
| Orientation 2 (body) | Straight |
| Body Plating | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Frequency | DC to 6GHz |
| Impedance | 50 Ohms |
| VSWR | ≤1.2 |
| CABLE SPECIFICATION | |
| Cable Diameter | 13.30 mm |
| Cable Type | 1/2 Super flex cable |
| Length | 2meter |
| Frequency Range | 8GHz |
| Temp (Max Degrees Celsius) | +85 |
| Temp (Min Degrees Celsius) | -40 |
