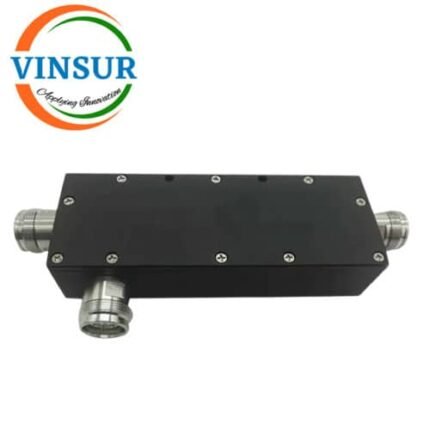

Directional Coupler (698-4000MHz, 4.3-10, N-Female)
P/N : VSW-5G-4.3-F-DC
- RF Directional Coupler
- 50Ω
- 4.3-10 Female
- 300W
- Frequency (MHz) – 698-4000
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Coupling(dB) | 20 |
| Accuracy(dB) | ±1.4 |
| Insertion Loss(dB) | ≤0.40 |
| Isolation | ≥33 |
| Freq(MHz) | 698-4000MHz |
| VSWR | ≤1.30 |
| PIM Rating(dBc) | -161dBc@2x43dBm |
| Power Rating(W) | 300W (average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3/10-female |
| Colour | Black |
| Relative Humidity | 5-95% |
