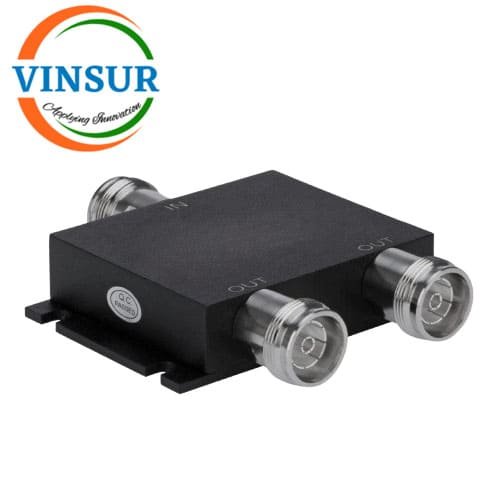

RF Combiner(5G 1:2 Way 698-4200MHz 4.3-10 Female)
P/N : VSW-1:2RC-4.3-5G-4.2
- RF Combiner
- 50Ω
- 1:2 Way
- 4.3-10 Female
- Frequency (GHz) – 698-4200MHz
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATIONS | |
| Frequency (MHz) | 698-4200 |
| VSWR | ≤ 1.3 |
| Insertion Loss(dB) | ≤6.1±1.2 |
| Isolation(dB) | ≤23 |
| PIM (dBc@2*43dBm) | ≤-155 |
| Input Power(W) | 300 |
| Impedance(Ω) | 50 |
| RF Connector | 4.3-10-Female |
| Colour | Black/Customized |
| Relative humidity | 5%~95% |
| Operating Temperature(°C) | -35 ~ +75 |
| Applications | Indoor/Outdoor(IP65) |
