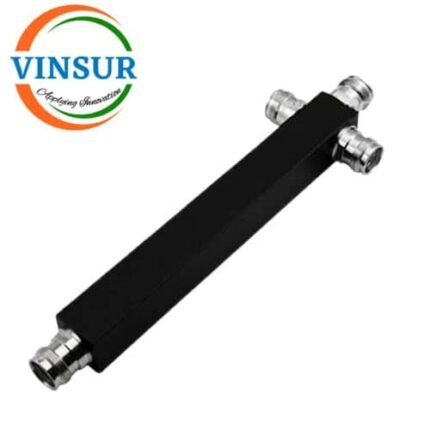

RF Splitter (3-Way 380-2700MHz 4.3-10 Female)
P/N : VSW-3PS-327-160-41F
- RF Splitter
- 3-way
- 4.3-10 Female
- Frequency(MHz)Â – 380-2700MHz
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Split Chanel | 3-way |
| Split Loss(dB) | 4.8 |
| Insertion Loss(dB) | ≤0.5 |
| Freq(MHz) | 380-2700MHz |
| VSWR | ≤1.35 |
| PIM Rating(dBc) | -160dBc@2x43dBm |
| Power Rating(W) | 300W (Average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3/10-female |
| Color | Black-plated |
| Dimensions(mm) | See Mechanical Drawing |
| Operating Temperature(℃) | -30~+65 |
| Relative Humidity | 5-95% |
| Application | Indoor & outdoor using IP65 |
| Weight(kg) | 0.70 |
