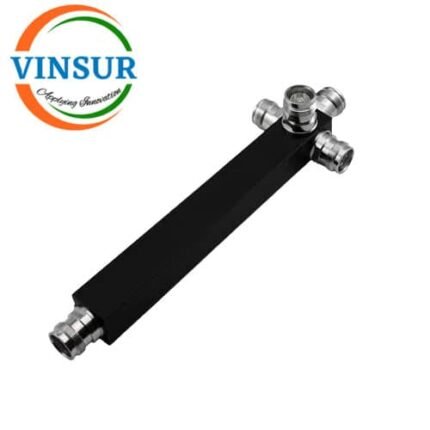

RF Power Divider (4-Way 380-2700MHz 4.3-10 Female)
P/N : VSW-4PS-3827-160-41F
- RF Power Divider
- 4-Way
- 4.3-10 Female
- Impedance – 50Ω
- Frequency(MHz)Â – 380-2700
Click Here to get Data Sheet
For Orders & Info
Description
| SPECIFICATION | |
| Split Chanel | 4-way |
| Split Loss(dB) | 6.0 |
| Insertion Loss(dB) | ≤0.6 |
| PIM(dBc) | -160dBc@2x43dBm |
| Freq(MHz) | 380-2700MHz |
| VSWR | ≤1.25 |
| Power Rating(W) | 300W (average Per Port) |
| Impedance | 50 ohm |
| Connector | 4.3-10 Female |
| Colour | Black |
| Operating Temperature(℃) | -30~+65 |
| Weight(kg) | 0.85 |
