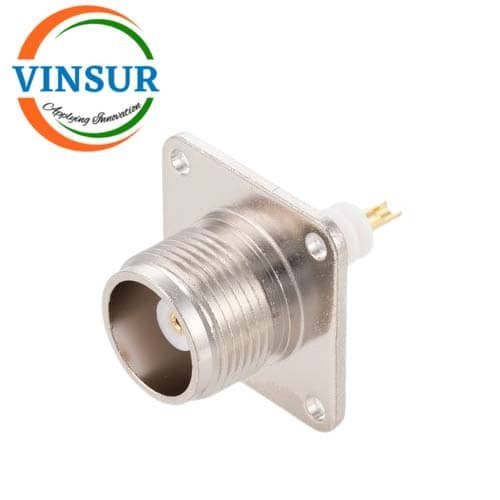

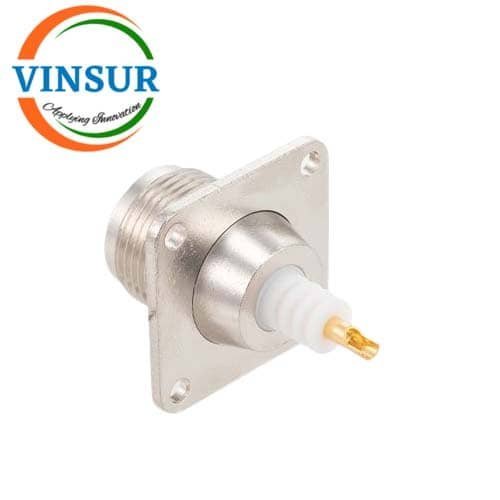

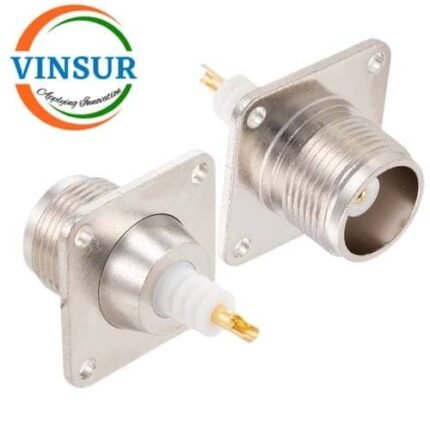

VSW260005-CN — RF CONNECTOR – 50 OHMS HN FEMALE STRAIGHT 4HOLE FLANGE SOLDER TYPE 10MM TEFLON PCB MOUNT
APPLICATIONS:Â Â
- Instrumentation
- High-Voltage Test Equipment
- Airframe
- Radiation Detection
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Jack (Female) |
| Orientation | Straight |
| Termination Style | Cable – Solder |
| Impedance (Ohms) | 50 |
| Body Finish | Nickel |
| Body Material | Brass |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination Style | PCB |
| Insulator Material | PTFE |
| Extended Teflon | 10mm Extended Teflon |
| Max Frequency (GHz) | DC – 4MHz |
| VSWR | ≤1.25 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -65° |
| Max. Temp. (Celsius) | 165° |
