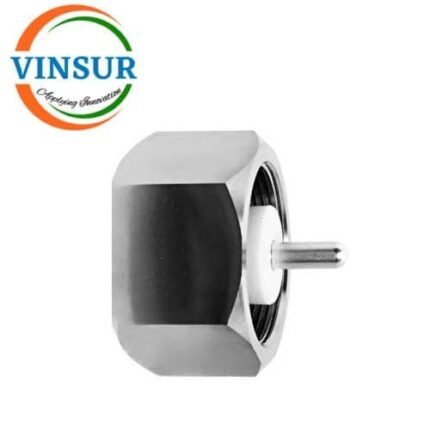

VSW250022-CN — RF CONNECTOR – 50 OHMS LC MALE STRAIGHT FOR RG393 CABLE
APPLICATIONS:Â Â
- Instrumentation
- High-Voltage Test Equipment
- Airframe
- Radiation Detection
For Orders & Info
Description
| CONNECTOR SPECIFICATIONS | |
| Gender | Plug (Male) |
| Orientation | Straight |
| Impedance (Ohms) | 50 |
| Body Finish | Tri-Metal plated |
| Body Material | Brass |
| Contact Finish | Silver plated |
| Contact Material | Brass |
| Insulator Material | PTFE |
| Cable Type | RG393 |
| Withstand Voltage | 4000V rms |
| Working Voltage | 2700V |
| Max Frequency (GHz) | DC – 3GHz |
| VSWR | ≤1.2 |
| Polarity | Standard |
| Min. Temp. (Celsius) | -55°C to 155°C |
| Durability(matings) | ＞500 |
| Center contact | ≤0.4mΩ |
| Outer contact | ≤1.5mΩ |
| Insulation resistance | ≥10000MΩ |
