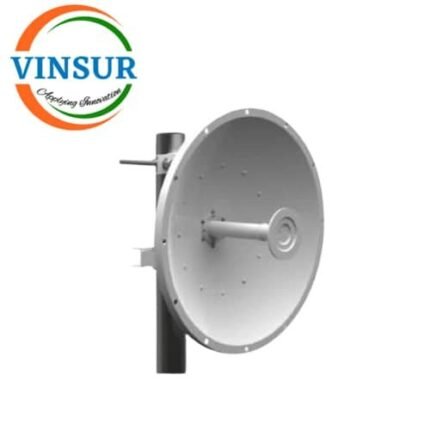

Dish Antenna (Dual Polarized) For Wireless Communications(5900–6200 MHz)
P/N : VSW-AN-DSH-29-590620
Applications:
- Television Broadcasting: The most common consumer application is for Direct-to-Home (DTH) satellite TV.
- Satellite Internet: Used in remote or rural areas where traditional cable or fiber is unavailable.
- Point-to-Point Communication: Used for terrestrial microwave links that carry telephone calls and data between fixed locations, often visible on telecommunication towers.
Click here to get Data Sheet
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 5900-6200 MHz |
| Gain | 2 x 29 dBi |
| VSWR (Max.) | ≤ 1.5 |
| Input Impedance | 50 Ω |
| Polarization | Dual X-Poln (±45) |
| Port to Port Isolation | >30 dB |
| H Plane Beam Width | 6°± 0.5° |
| E Plane Beam Width | 6°± 0.5° |
| Maximum Power Input | 100 W |
| Front to Back Ratio | ≥ 32 dB |
| Connector / Termination | 2 x N (Female) |
| Lighting Protection | DC Ground |
| MECHANICAL PARAMETERS | |
| Dimension | Ø24 inch |
| Antenna Material | Aluminium Alloy |
| Weight | 6 Kg |
| Packing Dimension | 27 x 27 x 8 Inch |
| Mounting Hardware | MS Galvanized & Powder Coated |
| Mounting Style | Tower and Pole |
| Support Pole Diameter | Ø2 inch |
| Mounting Adjustment | H Plane ± 180° |
| Mounting Adjustment | V Plane ± 15° |
| ENVIRONMENTAL PARAMETERS | |
| Temperature Range | -40 to +70°C |
| Wind Speed | 200 Km / Hr |
| Humidity | 95% No Condensation |
| Shock | QM 333, Category D. |
| Vibration | QM 333, Category D. |
| Water Protection | IP 65 |
| Environmental Protection | QM 333, Category D. |
| RoHS / WEEE Comply | Complied. |
