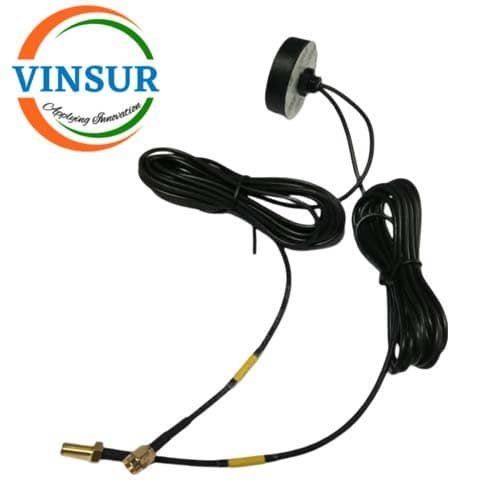

GPS and GSM Passive Combination Antenna(SMA Male to Female 5M)

P/N : VSW-GPS-4G-PCA

  • RF Antenna
  • Antenna Type : GPS & GSM Passive Combination Antenna
  • Frequency : GSM – 700 ~ 960/1710 ~2700MHz
  • Frequency : GPS – L1 & L2
  • GSM Gain : 3/4dBi
  • GPS Gain : 10dBi
  • Cable Length : 5 Meter
  • Connector : SMA Male to Female
  • Cable type : RG174 Cable

Applications:

  • Logistics & Fleet Management.
  • IoT & Smart Cities.

 Click here to get Data Sheet

For Orders & Info

Description

ELECTRICAL SPECIFICATIONS
GSM GPS
Frequency range 700 ~ 960/1710 ~2700MHz L1 & L2
Gain 3/4DBI          10 dBi
VSWR ≤1.5       ≤1.8
Passive Gain 3dbi
Input Impedance 50
Polarization Vertical
Maximum input power 50W
Input connector type(GSM & GPS) GSM SMA Male – GPS SMA Female
MECHANICAL SPECIFICATIONS
Dimensions Φ50×27mm
Antenna weight 68g
Cable length GPS And GSM 5M
Operating temperature -40~60°c
Radom color Black
Classification of waterproof IP67
Mounting Method Screw(Hole/Roof)
