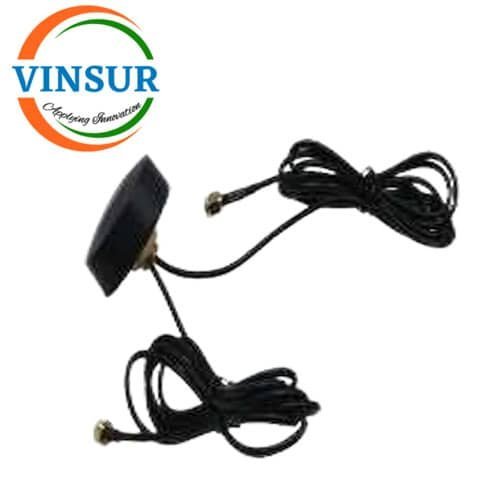

GPS AND GSM PASSIVE COMBINATION ANTENNA
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| ELECTRICAL SPECIFICATIONS | ||
| GSM | GPS | |
| Frequency range | 700 ~ 960/1710 ~2700MHz | L1 & L2 |
| Gain | 3/4DBI | Â Â Â Â Â Â Â Â 10 dBi |
| VSWR | ≤1.5 |      ≤1.8 |
| Passive Gain | 3dbi | |
| Input Impedance | 50 | |
| Polarization | Vertical | |
| Maximum input power | 50W | |
| Input connector type(GSM & GPS) | GSM SMA Male – GPS SMA Female | |
| MECHANICAL SPECIFICATIONS | ||
| Dimensions | Φ50×27mm | |
| Antenna weight | 68g | |
| Cable length GPS And GSM | 3M | |
| Operating temperature | -40～60°c | |
| Radom color | Black | |
| Classification of waterproof | IP67 | |
| Mounting Method | Screw(Hole/Roof) | |
