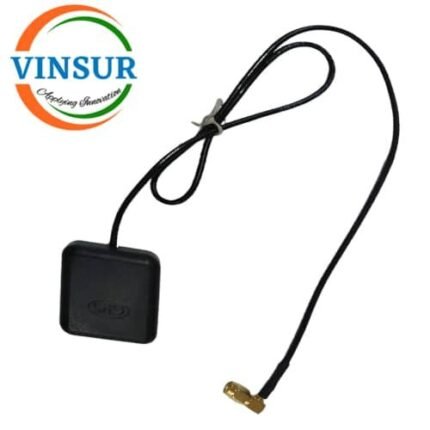

GPS EXTERNAL ANTENNA SMA MALE RIGHT ANGLE
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Antenna Type | Active |
| Operating Frequency | 1575.425(±3) MHz |
| LNA Gain Without Cable | 27.5(±0.5) dB |
| Patch Gain | 3.5(±0.5) dBi |
| DC Operating Voltage | 2.7-5.0V |
| DC Current | 10 ± 3 MHz |
| Noise Figure | 2dB |
| Impedance | 50Ω |
| Polarization | RHCP |
| Cable Type | RG174 |
| Cable Length | 600 ±10mm |
| RF Connector | SMA Male Right Angle |
| MECHANICAL SPECIFICATION | |
| Dimension(L×W×H) | 45.5×38.5×14.6 ±0.25mm |
| Mount Type | 3M/Averi Sticker |
| Operating Temperature | -20 to +65(°C) |
| Enclosure | ABS,PC |
| Environment | 95% RH Humidity |
| Description | GPS External Antenna |
