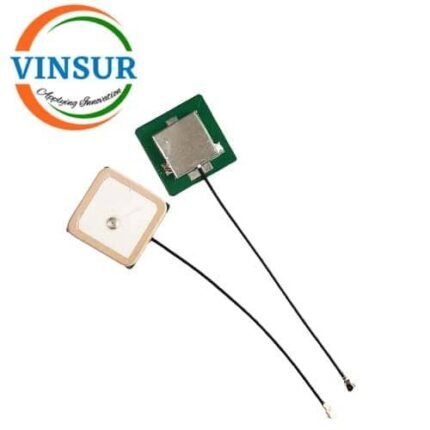

GPS Ceramic Built-In Antenna
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| ELECTRICAL SPECIFICATIONS | |
| Frequency range | 1575.42 MHz |
| Bandwidth | ＞5MHz |
| Peak Gain (dBi) | 3dBiBased on 5×5cm ground plane |
| Axial Ratio | 3 dBi |
| VSWR | 1.5:1 |
| Input Impedance | 50Ω |
| Polarization | RHCP |
| Maximum input power | 5W |
| Consumption Electric | <11mA |
| Supply Voltage | 2.8~3.8V |
| Input connector type | IPEX/U.FL or Requested |
| MECHANICAL SPECIFICATIONS | |
| Dimensions | ï¿ 18×18×4 mm |
| Antenna weight | 70g |
| Operating temperature | -40～60°c |
| LNA | |
| Frequency range | 1575.42 MHz |
| DC Voltage | (3.0-5.0)±0.3V |
| Gain (Typical) | 28dB(Without cable +25℃±10℃) |
| Output VSWR(Typical) | 1.5 |
| Noise Figure | ≤1.5dB |
