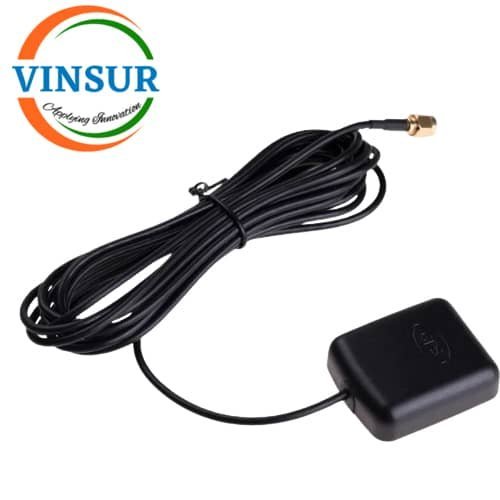

GPS EXTERNAL ANTENNA SMA MALE STRAIGHT
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Antenna Type | Active |
| Operating Frequency | 1575.425(±3) MHz |
| LNA Gain Without Cable | 27.5(±0.5) dB |
| Patch Gain | 3.5(±0.5) dBi |
| DC Operating Voltage | 1.5-3.0V |
| Noise Figure | 1.5dB |
| Impedance | 50Ω |
| Polarization | RHCP |
| Cable Type | RG174 |
| Cable Length | 5Meter |
| RF Connector | SMA Male |
| MECHANICAL SPECIFICATION | |
| Dimensions(L×W×H) | 38.5×46mm |
| Mount Type | Magnetic Mount |
| Operating Temperature | -20 to +65(°C) |
| Enclosure | ABS,PC |
| Environment | 95% RH Humidity |
| Description | GPS External Antenna |
