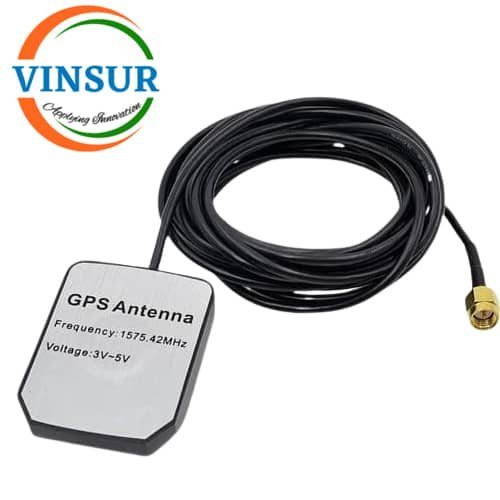

MAGNET MOUNT GPS ANTENNA(1575MHZ)
APPLICATIONS:Â Â
- Logistics & Fleet Management: These antennas are standard for tracking delivery routes, providing estimated arrival times (ETAs), and monitoring driver behavior (e.g., speeding or harsh braking).
- IoT & Smart Cities: Foundation for connected smart city sensors like waste bin monitors, streetlight controls, and environmental tracking stations.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency Range | 1575 MHz |
| Band Width | 40 MHz min. |
| Gain | 18 ± 3 dB |
| VSWR (Max.) | ≤ 1.5 |
| Impedance | 50  |
| Polarization | RHCP |
| Noise Figure | ≤ 2.0 dB |
| DC Current | 3.0±1mA (at 3.0V) |
| MECHANICAL SPECIFICATION | |
| Material | Dielectric Ceramics |
| PCB | FR4 |
| Shielding | Tinplate |
| RF Cable | RG-174 |
| RF Connector | SMA Male |
| Cable Length | 3 Meters |
| ENVIRONMENTAL PARAMETERS | |
| Operating Temperature | -40 to +85°C |
| Storage Temperature | -40 to +85°C |
