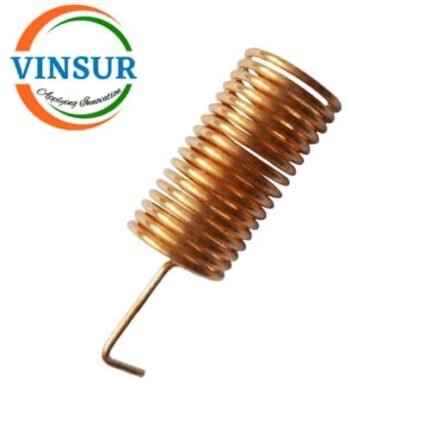

HELICAL ANTENNA PCB DIRECT MOUNT(865-868MHz)
APPLICATIONS:Â Â
- IoT & Smart Home:Â Smart meters (gas/water), security alarms, and smoke detectors.
- Asset Tracking:Â Compact GPS trackers for vehicles, pets, or luggage.
- Industrial M2M:Â Remote monitoring sensors and automated vending machines.
- Wearables:Â Personal emergency SOS buttons and health monitors.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Frequency | 865±5 MHz |
| Gain | 2.15 dBi |
| VSWR (Max) | 1.5 : 1 |
| H Plane BW | 360º |
| Maximum Power Handling | Â 5W |
| Impedance | 50Ω |
| MECHANICAL SPECIFICATION | |
| Dimension | 13 X 5.5 X 0.8mm |
| Weight | 1grm |
| Colour | Copper |
| Mounting Style | PCB Mount |
| Operating temperature | -40ºC to +70ºC |
