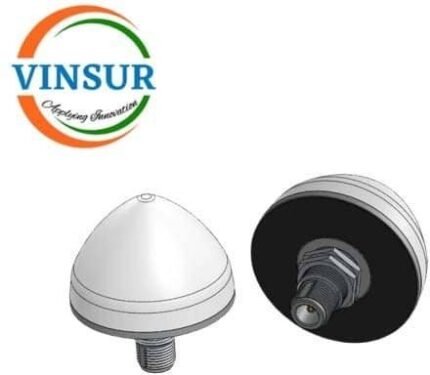

High Gain GPS-L1/GLONASS-G1 Antenna
P/N : VSW250034-AN
Applications:
- Fleet Management: Real-time tracking for trucks, buses, and delivery vans.
- Marine Systems: Reliable positioning for boats and commercial vessels.
- IoT & Development: Compatible with Raspberry Pi, Arduino, and industrial telemetry hubs.
- Autonomous Platforms: Enhancing accuracy for drones (UAVs) and robots.
Click here to get Data Sheet
For Orders & Info
Description
| FREQUENCY BANDWIDTH | OUT OF BAND REJECTION | |
| Lower Band | – | – |
| L-Band Corr. | – | |
| Upper Band | 1575-1606 MHz | > 50 dB @ < 1500 MHz
> 50 dB @ < 1550 MHz > 70 dB @ > 1640 MHz |
| Architecture | Pre-filtered | |
| Gain | 40 dB min. | |
| Noise Figure | 2.5 dB typ. | |
| VSWR | < 1.5:1 typ., 1.8:1 max. | |
| Supply Voltage Range | 2.5 to 16 VDC nominal, up to 50mV p-p ripple | |
| Supply Current | 20 mA typ. | |
| ESD Circuit Protection | 15 kV air discharge | |
| P 1dB Output | – | |
| Group Delay | – | |
| MECHANICAL SPECIFICATION | |
| Size | 66.5 mm (dia.) x 21 mm (h.) |
| Weight | 150 g |
| Radom | LEXAN™ EXL9330, Base: Zamac Metal |
| Mount | Through-hole (100 mm ground plane provided) |
| Available Connectors | Please refer to ordering guide |
| Size | 66.5 mm (dia.) x 21 mm (h.) |
| Weight | 150 g |
| ENVIRONMENTAL SPECIFICATION | |
| Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -55 °C to +95 °C |
