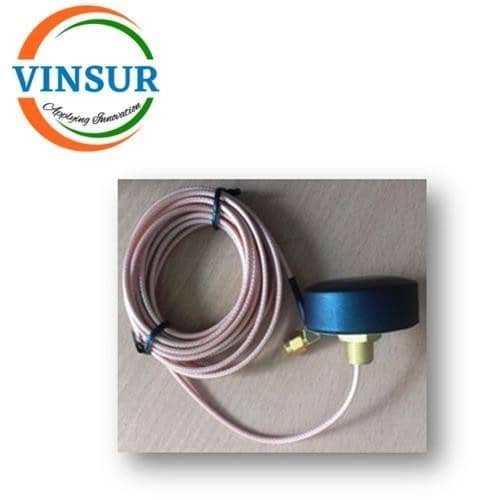

GPS Outdoor Antenna (1575.425MHz)
APPLICATIONS:Â Â
- Fleet Management:Â Real-time tracking for trucks, buses, and delivery vans.
- Marine Systems:Â Reliable positioning for boats and commercial vessels.
- IoT & Development:Â Compatible with Raspberry Pi, Arduino, and industrial telemetry hubs.
- Autonomous Platforms:Â Enhancing accuracy for drones (UAVs) and robots.
For Orders & Info
Description
| ELECTRICAL SPECIFICATION | |
| Antenna Type | Active |
| Operating Frequency | 1575.425MHz |
| LNA Gain Without Cable | 28.5(±0.5) dB |
| Patch Gain | 3.5(±0.5) dBi |
| DC Operating Voltage | 2.7-5.0V |
| DC Current | 10 ± 3 MHz |
| Noise Figure | 1.5dB |
| Impedance | 50Ω |
| Polarization | RHCP |
| Cable Type | RG316 |
| Cable Length | 3meter/customized |
| RF Connector | SMA Male Right Angle |
| MECHANICAL SPECIFICATION | |
| Dimensions(L×W×H) | 30×Ø46mm |
| Mount Type | Screw Mount |
| Operating Temperature | -20 to +65(°C) |
| Enclosure | ABS,PC |
| Environment | 95% RH Humidity |
| Description | GPS Outdoor Antenna |
